Details

---

Mechanical

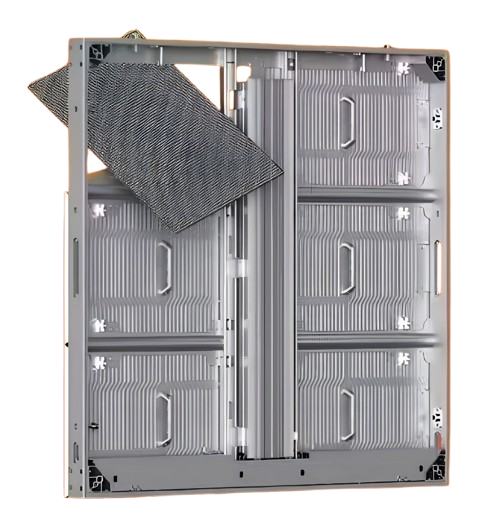

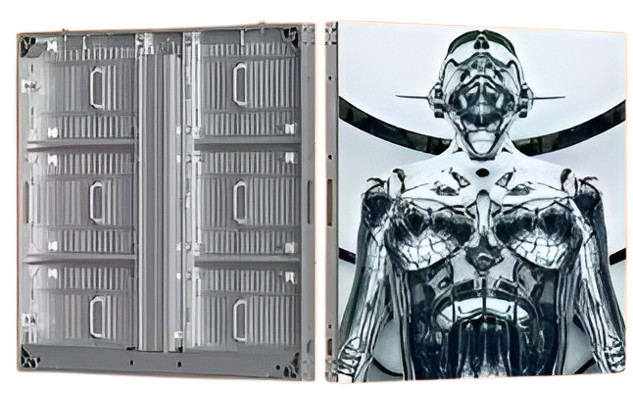

• Cabinet Material: Aluminum profile (die-cast aluminum bottom case)
• Cabinet Size: 960 × 960 × 82 mm

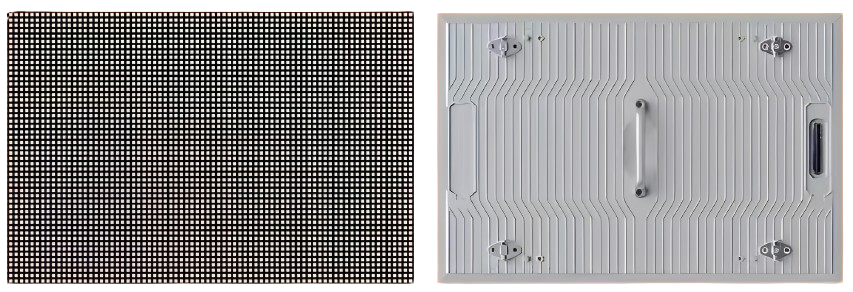

• Module Size: 480 × 320 × 22 mm
• Cabinet Weight: 25 kg/m²
• Process: High-precision CNC (accuracy <0.1mm)
• Design: 80% hollow structure → efficient heat dissipation
• Maintenance: Front & rear dual maintenance
• Optional: Customizable naked-eye 3D corner



Optical

• Gray Scale: 14–16 Bit
• Refresh Rate: 7680 Hz
• Viewing Angle: 140° / 140° (H / V)



Electrical

• Input Voltage: AC 100–240V
• Peak Power: 420 W/m²
• Average Power: 140 W/m²

Environmental

• Operating Temperature: –40°C to +50°C
• Protection Grade (Front/Rear): IP66
• Storage Humidity: 10%–90% RH
• Operating Humidity: 10%–90% RH

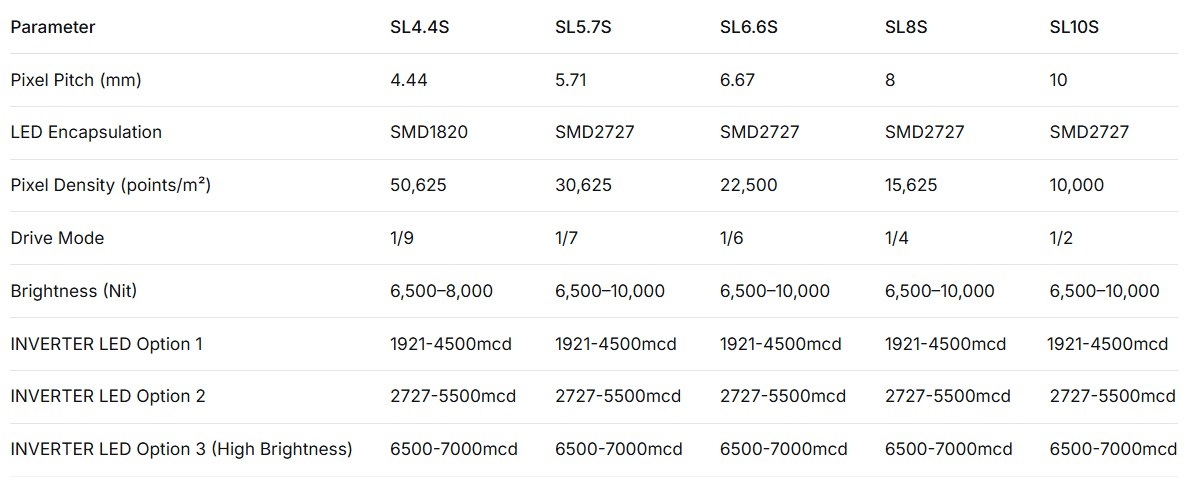

Model Specifications

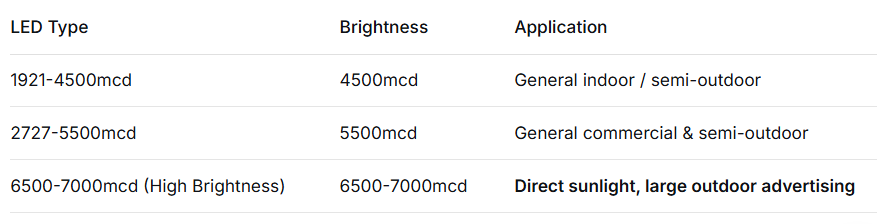

LED Selection Note
