Details

---

Screen Specifications:

• Brightness: ≥4000 cd/m²
• Uniformity: >95%
• Viewing Angles:
  • Horizontal: 140°±10°
  • Vertical: 130°±10°
• Optimal Viewing Distance: ≥8m
• Refresh Rates:
  • Standard: 960Hz-1920Hz
  • High: 1920Hz-3840Hz
• Frame Rate: ≥60 fps

Power Efficiency

• Power Consumption:
  • Maximum: ≤586W/m²
  • Average: ≤196W/m² (at 1/3 brightness)
  • Power Distribution: ≤884W/m² (calculated)
• Brightness Control: 256-level adjustment

Image Quality

• Color Depth: 14-16 bit per channel (RGB)
• Color Range: 4.398 trillion colors
• Pixel Specifications:
  • Pitch: 8.0mm
  • Density: 15,625 dots/m²
  • Configuration: 1R1G1B
  • LED Type: SMD3535 (2727/2525)

Reliability & Durability

• Lifespan: ≥100,000 hours
• MTBF: ≥10,000 hours
• Brightness Maintenance: ≤15% attenuation after 3 years
• Pixel Defects:
  • 0 continuous malfunctioning pixels
  • <0.0001 discrete defects (0 at factory)
  • <0.0003 blind spots (0 at factory)

Environmental Specifications

• Operating Conditions:
  • Temperature: -20°C to +40°C
  • Humidity: 10% to 90% RH
• Protection Features:
  • Over-temperature/overload protection
  • Power failure recovery
  • Image compensation
  • Optional lightning protection

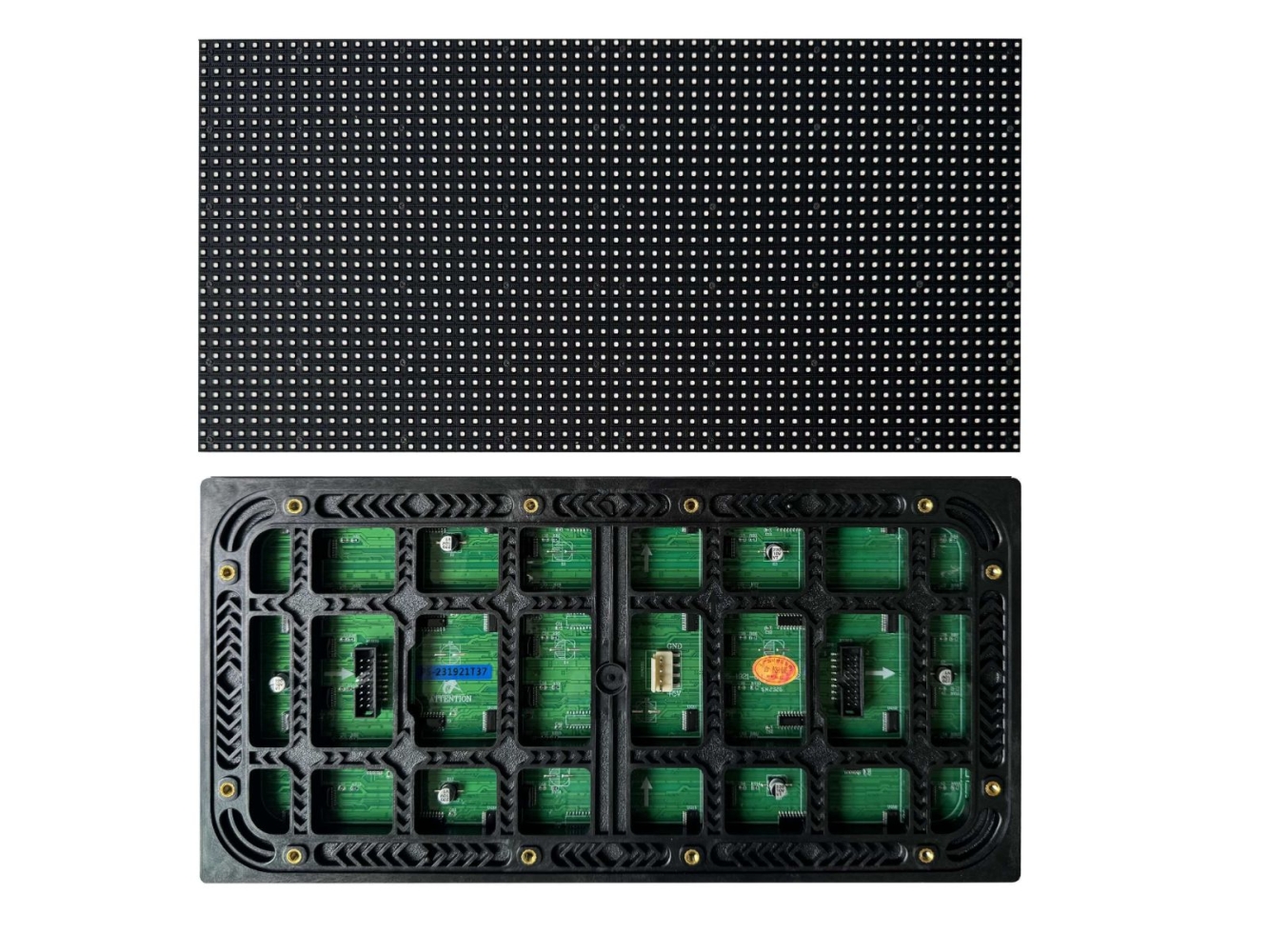

Physical Specifications

• Dimensions: 320×160×20mm
• Weight: 0.52kg ±0.01kg
• Flatness: <1mm/m²
• Design: Integrated LED driver

Electrical Specifications

• Input Voltage: 5V DC ±0.1V
• Max Current: ≤6A
• Power Consumption: ≤30W
• Drive Method: 1/5 constant current

System Integration

• Control: Computer-controlled with point-to-point mapping
• Inputs: DVI/VGA/HDMI/DP, composite video, S-Video, YPbPr
• Operation: Real-time video synchronization

Power Supply Options

• 40A: 4-5 modules
• 50A: 5-6 modules
• 60A: 5-7 modules
• 80A: 7-9 modules
